09 0464 300 19 | binder

Panel socket, 19 pole, solder connection, screw locking, straight, 09 0464 300 19

Order No.: 70P1542
EAN: 4099891703554
MPN:
09 0464 300 19
Series: 723

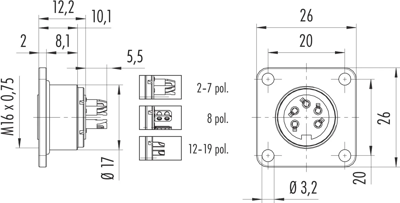

09 0464 300 19 binder Other Circular Connectors Image 1

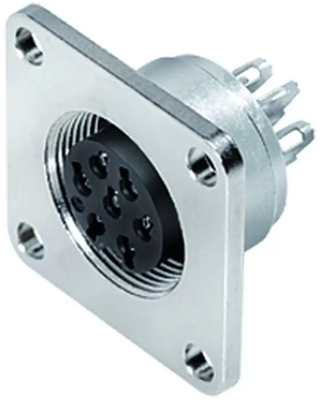

09 0464 300 19 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
29.2264 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
29.23 € *
Price list
Quantity
Price per unit*
1 pcs.
29.2264 €
10 pcs.
27.4771 €
25 pcs.
25.8349 €
50 pcs.
24.2760 €
*incl. VAT plus shipping costs
Subject to prior sale

Square female panel mount connector, 09 0464 300 19, binder

M16 IP67 Square female panel mount connector, Contacts: 19, unshielded, solder, IP67, UL.

Technical specifications
Filter Property Value
Pin number 19 pole
Shell Material zinc die casting
Cable cross-section 0.25 mm²
Version panel socket
Assembly panel mounting
Additional parts equipped
contact surface gold-plated
Orientation straight
Type of locking screw locking
Contact connection solder connection
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
