09 0453 300 14 | binder

Panel plug, 14 pole, solder connection, screw locking, straight, 09 0453 300 14

Order No.: 70P1535
EAN: 4099891703486
MPN:
09 0453 300 14
Series: 723

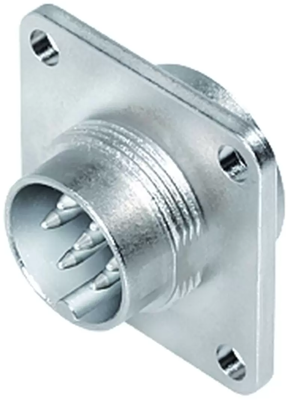

09 0453 300 14 binder Other Circular Connectors Image 1

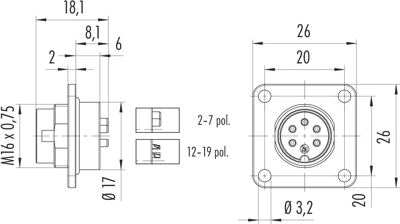

09 0453 300 14 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
19.0757 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
19.08 € *
Price list
Quantity
Price per unit*
1 pcs.
19.0757 €
10 pcs.
17.9333 €
50 pcs.
16.8623 €
100 pcs.
15.8508 €
*incl. VAT plus shipping costs
Subject to prior sale

Square male panel mount connector, 09 0453 300 14, binder

M16 IP67 Square male panel mount connector, Contacts: 14, unshielded, solder, IP67, UL.

Technical specifications
Filter Property Value
Pin number 14 pole
Shell Material zinc die casting
Cable cross-section 0.25 mm²
Version panel plug
Assembly panel mounting
Additional parts equipped
contact surface gold-plated
Orientation straight
Type of locking screw locking
Contact connection solder connection
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
