09 0448 00 12 | binder

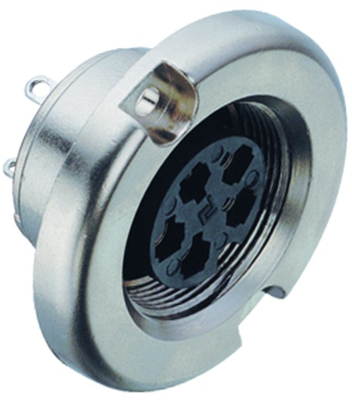

Panel socket, 12 pole, solder cup, screw locking, straight, 09 0448 00 12
Unit Price (€ / pc.)
32.7012 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
32.70 € *
Price list
Quantity
Price per unit*
1 pcs.
32.7012 €
10 pcs.
30.7377 €
25 pcs.
28.5838 €
50 pcs.
26.5846 €
*incl. VAT plus shipping costs
Subject to prior sale

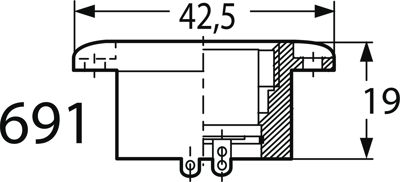

Industrial connector, type Binder 691.
Robust design with screw lock.; Contacts: copper tin. Contact finish: silver-plated. Cable connection:solder contacts, 0.75 mm². Contact block: PET UL 94 V-0. Housing: anodized aluminum alloy. Degree of protection (IEC 60529): IP 40. Cable outlet: 5.0 to 8.0 mm. Test surge voltage: 1750 V. Contact resistance: max. 8.0 mohm. Insulation resistance: min. 10 Gohm. Operating temperatures: - 40 to +85 °C.
With screw lock, type 691.
Material: zinc die-cast.
Technical attributes (type, number of poles, rated voltage/rated current (+40 °C)): 09-0448-00-12, 12-pole, 125 V/5.0 A
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder cup | |
| Shell Material | aluminum alloy | |
| Orientation | straight | |
| Assembly | PCB mounting | |
| Additional parts | equipped | |
| Version | panel socket | |
| Pin number | 12 pole | |
| Type of locking | screw locking | |
| contact surface | silver-plated | |
| Cable cross-section | 0.75 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
