09 0445 00 12 | binder

Plug, 12 pole, solder cup, screw locking, straight, 09 0445 00 12

Order No.: 70F9104
EAN: 4099889740660
MPN:
09 0445 00 12
Series: 691

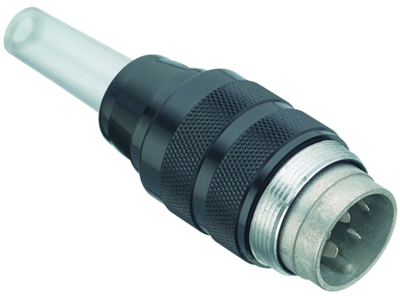

09 0445 00 12 binder Other Circular Connectors Image 1

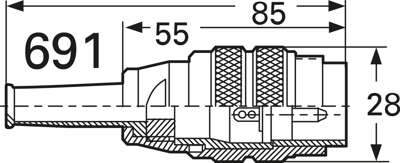

09 0445 00 12 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
41.0074 € *
Available: 43 pcs.
Total Price:
41.01 € *
Price list
Quantity
Price per unit*
1 pcs.
41.0074 €
5 pcs.
38.9606 €
10 pcs.
36.2236 €
25 pcs.
33.6889 €
*incl. VAT plus shipping costs
Subject to prior sale

Industrial connector, type Binder 691.

Robust design with screw lock.; Contacts: CuZn. Contact finish: tinned (male contacts). Cable connection: solder contacts, 0.75 mm². Contact block: PET UL 94 V-0. Housing:anodized aluminum alloy. Degree of protection (IEC 60529): IP 40. Cable outlet: 5.0 to 8.0 mm. Test surge voltage: 1750 V. Contact resistance: max. 8.0 mohm. Insulation resistance: min. 10 Gohm. Operating temperatures: - 40 to +85 °C.

With screw lock, type 691.

Technical attributes (type, number of poles, rated voltage/rated current (+40 °C)): 09-0445-00-12, 12-pole, 125 V/5.0 A

Technical specifications
Filter Property Value
Version plug
Cable cross-section 0.75 mm²
Pin number 12 pole
Orientation straight
Contact connection solder cup
Type of locking screw locking
Cable diameter 5 to 8 mm
Assembly cable assembly
Additional parts equipped
contact surface CuSnZn
Shell Material aluminum alloy
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
