09 0441 81 04 | binder
Panel plug, 4 pole, solder connection, screw locking, straight, 09 0441 81 04
Unit Price (€ / pc.)
9.8651 € *
Available: 6 pcs.
Total Price:
9.87 € *
Price list
Quantity
Price per unit*
1 pcs.
9.8651 €
10 pcs.
8.6751 €
100 pcs.
7.6160 €
250 pcs.
7.3185 €
1000 pcs.
6.8544 €
*incl. VAT plus shipping costs
Subject to prior sale

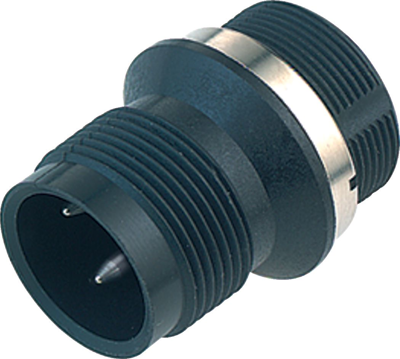

Male panel mount connector, 09-0441-81-04, Franz Binder
M18 Male connector, poles 4, unshielded, solder, IP67
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of locking | screw locking | |
| contact surface | CuSnZn | |
| Assembly | panel mounting | |
| Contact connection | solder connection | |
| Cable cross-section | 1.5 mm² | |
| Pin number | 4 pole | |
| Version | panel plug | |
| Shell Material | PBT/PA | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
