09 0440 000 04 | binder
Angle coupling, 4 pole, screw connection, screw locking, angled, 09 0440 000 04
Unit Price (€ / pc.)
26.4656 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
26.47 € *
Price list
Quantity
Price per unit*
1 pcs.
26.4656 €
10 pcs.
24.8829 €
25 pcs.
23.3716 €
50 pcs.
21.9793 €
*incl. VAT plus shipping costs
Subject to prior sale

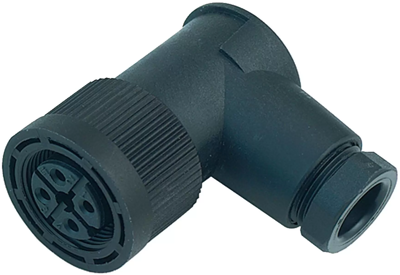

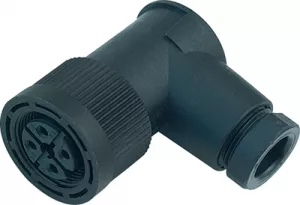

Female angled connector, 09 0440 000 04, binder
M18 Female angled connector, Contacts: 4, 6.5-8.0 mm, unshielded, screw clamp, IP67, UL.
Technical specifications
| Version | angle coupling | |
| Cable cross-section | 1.5 mm² | |
| Pin number | 4 pole | |
| Orientation | angled | |
| Contact connection | screw connection | |
| Type of locking | screw locking | |
| Cable diameter | 6.5 to 8 mm | |
| Assembly | cable assembly | |
| Additional parts | equipped | |
| contact surface | CuSnZn | |
| Shell Material | PBT/PA |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
