09 0440 00 04 | binder

Angle coupling, 4 pole, screw connection, screw locking, angled, 09 0440 00 04

Order No.: 66P0874
EAN: 4099879084057
MPN:
09 0440 00 04
Series: 714

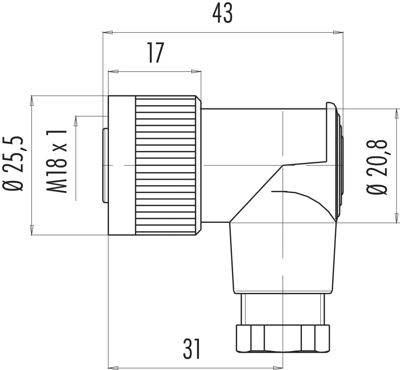

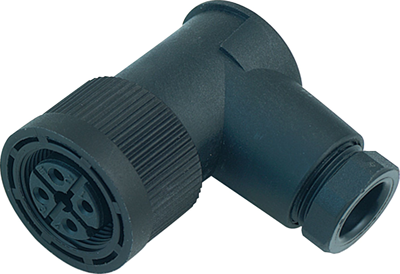

09 0440 00 04 binder Other Circular Connectors Image 1
09 0440 00 04 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
32.7964 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
32.80 € *
Price list
Quantity
Price per unit*
1 pcs.
32.7964 €
10 pcs.
28.8694 €
50 pcs.
26.8940 €
150 pcs.
25.7040 €
*incl. VAT plus shipping costs
Subject to prior sale

Female angled connector, 09-0440-00-04, Franz Binder

M18 Female connector, poles 4, 6.5-8.0 mm, unshielded, screw clamp, IP67

Technical specifications
Filter Property Value
Shell Material PBT/PA
contact surface CuSnZn
Pin number 4 pole
Contact connection screw connection
Version angle coupling
Assembly cable assembly
Cable cross-section 1.5 mm²
Type of locking screw locking
Cable diameter 6.5 to 8 mm
Orientation angled
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
