09 0428 00 08 | binder

Panel socket, 8 pole, solder connection, screw locking, straight, 09 0428 00 08

Order No.: 67F430
EAN: 4099889702873
MPN:
09 0428 00 08
Series: 712

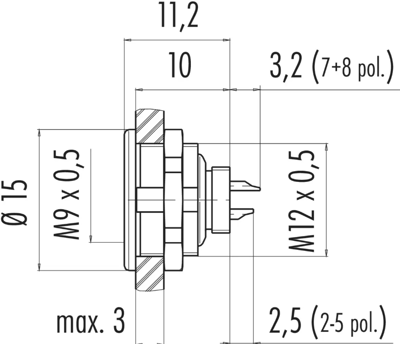

09 0428 00 08 binder Other Circular Connectors Image 1

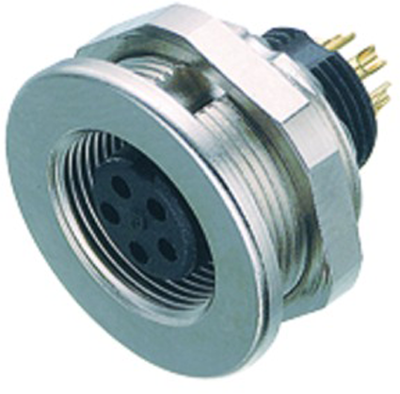

09 0428 00 08 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
27.7984 € *
Available: 127 pcs.
Total Price:
27.80 € *
Price list
Quantity
Price per unit*
1 pcs.
27.7984 €
10 pcs.
24.4545 €
50 pcs.
22.7885 €
150 pcs.
21.7889 €
500 pcs.
20.6941 €
*incl. VAT plus shipping costs
Subject to prior sale

Subminiature circular connector, type Binder 712.

With screw lock and solder terminals for simple assembly; Female contacts: copper tin. Male contacts:copper zinc. Contact finish: gold-plated. Wiring cross-section: max. 0.14 mm², Contact carrier:male/female: PBT/PA 66 to UL 94 V-0. Cable housing: PA 66 to UL 94 HB. Flanged housing: copper zinc.Cable outlet: 3.5 to 5.0 mm. Degree of protection housing: (IEC 60529): IP 67. Degree of soiling: 1. Rated voltage: 125 VAC. Test surge voltage: 1750 VAC. Rated current: (at 40 °C): 1.0 A. Contact resistance:max. 3.0 mohm. Insulation resistance: at least 10 Gohm. Mechanical useful life: at least 500 insertion cycles. Operating temperatures: - 40 to +85 °C.

FeMale panel mount connector with solder terminals, type 712.

Type: 09-0428-00-08, 8-pole

Technical specifications
Filter Property Value
Assembly cable assembly
Orientation straight
Additional parts equipped
Type of locking screw locking
Pin number 8 pole
Version panel socket
contact surface gold-plated
Contact connection solder connection
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
Substance description Lead
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
