09 0412 90 04 | binder

Panel socket, 4 pole, solder connection, screw locking, straight, 09 0412 90 04

Order No.: 67F444
EAN: 4099889702903
MPN:
09 0412 90 04
Series: 712

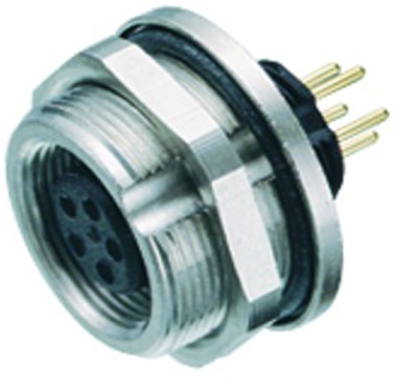

09 0412 90 04 binder Other Circular Connectors Image 1

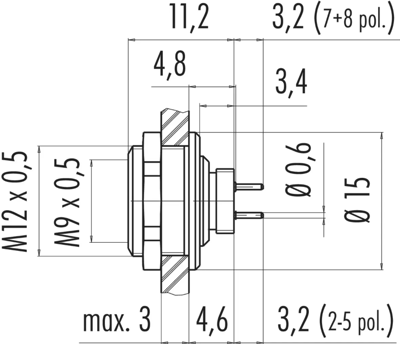

09 0412 90 04 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
14.3276 € *
Available: 121 pcs.
Leadtime: On Request **
Total Price:
14.33 € *
Price list
Quantity
Price per unit*
1 pcs.
14.3276 €
10 pcs.
12.6259 €
50 pcs.
11.7453 €
150 pcs.
11.2336 €
500 pcs.
10.6624 €
*incl. VAT plus shipping costs
**Subject to prior sale

Subminiature circular connector, type Binder 712.

With screw lock and solder terminals for simple assembly; Female contacts: copper tin. Male contacts:copper zinc. Contact finish: gold-plated. Wiring cross-section: max. 0.25 mm². Contact carrier:male/female: PBT/PA 66 to UL 94 V-0. Cable housing: PA 66 to UL 94 HB. Flanged housing: copper zinc.Cable outlet: 3.5 to 5.0 mm. Degree of protection housing: (IEC 60529): IP 67. Degree of soiling: 1. Rated voltage: 125 VAC. Test surge voltage: 1750 VAC. Rated current: (at 40 °C): 3.0 A. Contact resistance:max. 3.0 mohm. Insulation resistance: at least 10 Gohm. Mechanical useful life: at least 500 insertion cycles. Operating temperatures: - 40 to +85 °C.

Front mount, with PCB solder pins, type 712.

Type: 09-0412-90-04, 4-pole

Technical specifications
Type of locking screw locking
contact surface gold-plated
Assembly cable assembly
Contact connection solder connection
Pin number 4 pole
Version panel socket
Additional parts equipped
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
