09 0412 80 04 | binder

Panel socket, 4 pole, solder connection, screw locking, straight, 09 0412 80 04

Order No.: 66P0737
EAN: 4099889699234
MPN:
09 0412 80 04
Series: 712

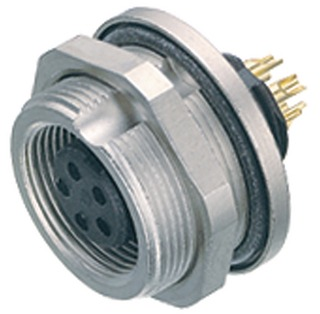

09 0412 80 04 binder Other Circular Connectors Image 1
09 0412 80 04 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
10.8171 € *
Available: 52 pcs.
Total Price:
10.82 € *
Price list
Quantity
Price per unit*
1 pcs.
10.8171 €
10 pcs.
10.0555 €
50 pcs.
9.3653 €
100 pcs.
8.4252 €
*incl. VAT plus shipping costs
Subject to prior sale

Subminiature connector, 09-0412-80-04, BINDER

M9 IP67 Female panel mount connector, Contacts: 4, unshielded, solder, IP67, front mounting.

Features

  • Contact material: CuSn (Bronze)
  • Pollution degree: 1
  • Overvoltage category: I
Technical specifications
Filter Property Value
Contact connection solder connection
contact surface gold-plated
Assembly cable assembly
Additional parts equipped
Orientation straight
Pin number 4 pole
Version panel socket
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
Substance description Lead
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
