09 0412 35 04 | binder

Panel socket, 4 pole, THT, screw locking, straight, 09 0412 35 04

Order No.: 70P0967
EAN: 4099891701079
MPN:
09 0412 35 04
Series: 712
09 0412 35 04 binder Other Circular Connectors Image 1
09 0412 35 04 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
17.4216 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
17.42 € *
Price list
Quantity
Price per unit*
1 pcs.
17.4216 €
10 pcs.
16.2078 €
50 pcs.
15.0773 €
100 pcs.
14.0182 €
*incl. VAT plus shipping costs
Subject to prior sale

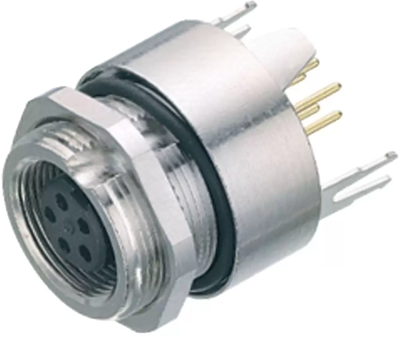

Female panel mount connector, 09 0412 35 04, binder

M9 IP67 Female panel mount connector, Contacts: 4, shieldable, THT, IP67, front fastened.

Technical specifications
Filter Property Value
Type of locking screw locking
contact surface gold-plated
Assembly panel mounting
Contact connection THT
Pin number 4 pole
Version panel socket
Additional parts equipped
Shell Material zinc die casting
Orientation straight
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
