09 0412 00 04 | binder

Panel socket, 4 pole, solder connection, screw locking, straight, 09 0412 00 04

Order No.: 67F424
EAN: 4099889702842
MPN:
09 0412 00 04
Series: 712

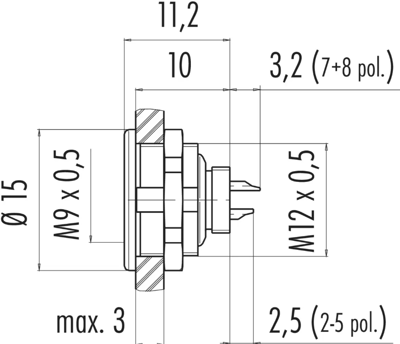

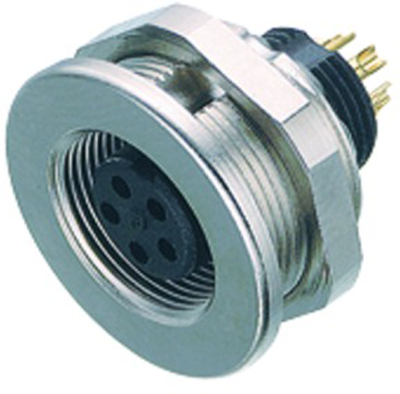

09 0412 00 04 binder Other Circular Connectors Image 1
09 0412 00 04 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
10.0079 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
10.01 € *
Price list
Quantity
Price per unit*
1 pcs.
10.0079 €
10 pcs.
8.8060 €
50 pcs.
8.2110 €
150 pcs.
7.8302 €
500 pcs.
7.4494 €
*incl. VAT plus shipping costs
Subject to prior sale

Subminiature circular connector, type Binder 712.

With screw lock and solder terminals for simple assembly; Female contacts: copper tin. Male contacts:copper zinc. Contact finish: gold-plated. Wiring cross-section: max. 0.25 mm², Contact carrier:male/female: PBT/PA 66 to UL 94 V-0. Cable housing: PA 66 to UL 94 HB. Flanged housing: copper zinc.Cable outlet: 3.5 to 5.0 mm. Degree of protection housing: (IEC 60529): IP 67. Degree of soiling: 1. Rated voltage: 125 VAC. Test surge voltage: 1750 VAC. Rated current: (at 40 °C): 3.0 A. Contact resistance:max. 3.0 mohm. Insulation resistance: at least 10 Gohm. Mechanical useful life: at least 500 insertion cycles. Operating temperatures: - 40 to +85 °C.

FeMale panel mount connector with solder terminals, type 712.

Type: 09-0412-00-04, 4-pole

Technical specifications
Filter Property Value
Pin number 4 pole
contact surface gold-plated
Type of locking screw locking
Contact connection solder connection
Assembly cable assembly
Orientation straight
Version panel socket
Additional parts equipped
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
