09 0404 00 02 | binder

Panel socket, 2 pole, solder connection, screw locking, straight, 09 0404 00 02

Order No.: 67F420
EAN: 4099889702828
MPN:
09 0404 00 02
Series: 712

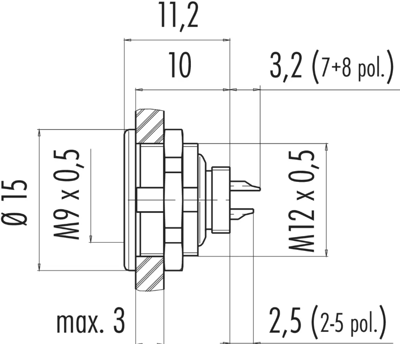

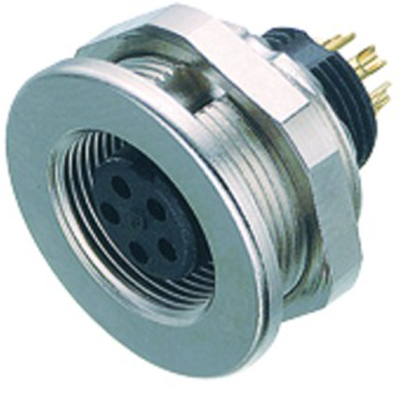

09 0404 00 02 binder Other Circular Connectors Image 1
09 0404 00 02 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
7.23 € *
Available: 41 pcs.
Total Price:
7.23 € *
Price list
Quantity
Price per unit*
1 pcs.
7.23 €
10 pcs.
6.36 €
100 pcs.
5.58 €
250 pcs.
5.36 €
1000 pcs.
5.03 €
*plus VAT and shipping costs
Subject to prior sale

Subminiature circular connector, type Binder 712.

With screw lock and solder terminals for simple assembly; Female contacts: copper tin. Male contacts: copper zinc. Contact finish: gold-plated. Wiring cross-section: max. 0.25 mm², Contact carrier: male/female: PBT/PA 66 to UL 94 V-0. Cable housing: PA 66 to UL 94 HB. Flanged housing: copper zinc. Cable outlet: 3.5 to 5.0 mm. Degree of protection housing: (IEC 60529): IP 67. Degree of soiling: 1. Rated voltage: 125 VAC. Test surge voltage: 1750 VAC. Rated current: (at 40 °C): 4.0 A. Contact resistance: max. 3.0 mohm. Insulation resistance: at least 10 Gohm. Mechanical useful life: at least 500 insertion cycles. Operating temperatures: - 40 to +85 °C.

FeMale panel mount connector with solder terminals, type 712.

Type: 09-0404-00-02, 2-pole

Technical specifications
Filter Property Value
Contact connection solder connection
Orientation straight
Assembly cable assembly
Additional parts equipped
Version panel socket
Pin number 2 pole
Type of locking screw locking
contact surface gold-plated
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
