09 0403 80 02 | binder
Panel plug, 2 pole, solder connection, screw locking, straight, 09 0403 80 02
Unit Price (€ / pc.)
11.9357 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
11.94 € *
Price list
Quantity
Price per unit*
1 pcs.
11.9357 €
10 pcs.
11.0908 €
50 pcs.
10.3173 €
100 pcs.
9.2820 €
*incl. VAT plus shipping costs
Subject to prior sale

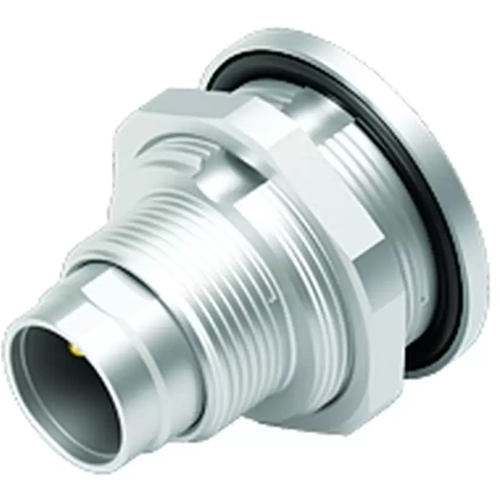

Male panel mount connector, 09 0403 80 02, binder
M9 IP67 Male panel mount connector, Contacts: 2, unshielded, solder, IP67, front fastened.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 0.25 mm² | |
| Contact connection | solder connection | |
| contact surface | gold-plated | |
| Orientation | straight | |
| Shell Material | CuZn | |
| Type of locking | screw locking | |
| Assembly | panel mounting | |
| Version | panel plug | |
| Pin number | 2 pole | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
