09 0403 35 02 | binder
Panel plug, 2 pole, THT, screw locking, straight, 09 0403 35 02
Unit Price (€ / pc.)
16.8861 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
16.89 € *
Price list
Quantity
Price per unit*
1 pcs.
16.8861 €
10 pcs.
15.6961 €
50 pcs.
14.6013 €
100 pcs.
13.5779 €
*incl. VAT plus shipping costs
Subject to prior sale

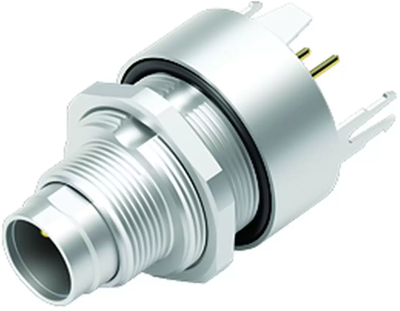

Male panel mount connector, 09 0403 35 02, binder
M9 IP67 Male panel mount connector, Contacts: 2, shieldable, THT, IP67, front fastened.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 2 pole | |
| Shell Material | zinc die casting | |
| Version | panel plug | |
| Assembly | panel mounting | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Contact connection | THT |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
