09 0339 00 16 | binder

Panel plug, 16 pole, solder connection, screw locking, straight, 09 0339 00 16

Order No.: 70P0712
EAN: 4099891698928
MPN:
09 0339 00 16
Series: 680

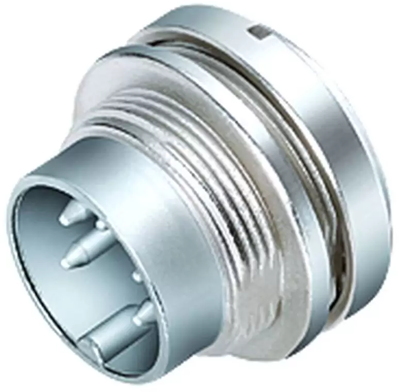

09 0339 00 16 binder Other Circular Connectors Image 1
09 0339 00 16 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
15.4462 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
15.45 € *
Price list
Quantity
Price per unit*
1 pcs.
15.4462 €
10 pcs.
14.3633 €
50 pcs.
13.3637 €
100 pcs.
12.4236 €
*incl. VAT plus shipping costs
Subject to prior sale

Male panel mount connector, 09 0339 00 16, binder

M16 IP40 Male panel mount connector, Contacts: 16, unshielded, solder, IP40.

Technical specifications
Filter Property Value
Type of locking screw locking
Version panel plug
Assembly panel mounting
Cable cross-section 0.25 mm²
Contact connection solder connection
Additional parts equipped
contact surface gold-plated
Shell Material zinc die casting
Pin number 16 pole
Orientation straight
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
