09 0338 00 16 | binder
Jack, 16 pole, solder connection, screw locking, straight, 09 0338 00 16
Unit Price (€ / pc.)
19.4208 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
19.42 € *
Price list
Quantity
Price per unit*
1 pcs.
19.4208 €
10 pcs.
18.2546 €
50 pcs.
17.1717 €
100 pcs.
16.1364 €
*incl. VAT plus shipping costs
**Subject to prior sale

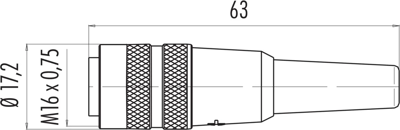

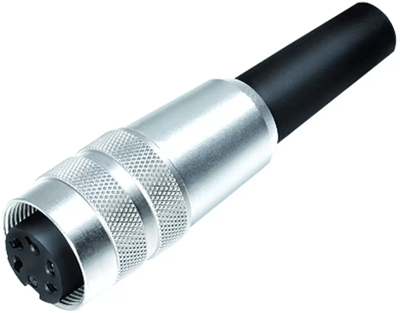

Female cable connector, 09 0338 00 16, binder
M16 IP40 Female cable connector, Contacts: 16, 3.0-6.0 mm, unshielded, solder, IP40.
Technical specifications
| Version | jack | |
| Cable cross-section | 0.25 mm² | |
| Pin number | 16 pole | |
| Orientation | straight | |
| Contact connection | solder connection | |
| Type of locking | screw locking | |
| Cable diameter | 3 to 6 mm | |
| Assembly | cable assembly | |
| Additional parts | equipped | |
| contact surface | gold-plated | |
| Shell Material | PA |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
