09 0337 02 16 | binder

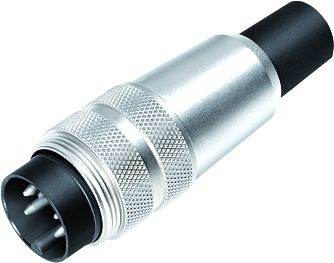

Plug, 16 pole, solder connection, screw locking, straight, 09 0337 02 16
Unit Price (€ / pc.)
22.0983 € *
Available in 5 Days: 100 pcs. - if ordered today
Total Price:
22.10 € *
Price list
Quantity
Price per unit*
1 pcs.
22.0983 €
10 pcs.
19.4565 €
50 pcs.
18.1118 €
150 pcs.
17.3264 €
500 pcs.
16.4339 €
*incl. VAT plus shipping costs
Subject to prior sale
Male cable connector, 09-0337-02-16, Franz Binder
M16 IP40 Male connector, poles 16, 6.0-8.0 mm, unshielded, solder, IP40
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 16 pole | |
| Contact connection | solder connection | |
| Assembly | cable assembly | |
| Version | plug | |
| Cable diameter | 6 to 8 mm | |
| Cable cross-section | 0.25 mm² | |
| Shell Material | PA | |
| Orientation | straight | |
| contact surface | gold-plated | |
| Type of locking | screw locking |
Download
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
