09 0336 80 19 | binder

Panel socket, 19 pole, solder connection, screw locking, straight, 09 0336 80 19

Order No.: 66P0689
EAN: 4099889699173
MPN:
09 0336 80 19
Series: 680

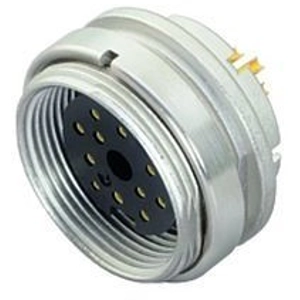

09 0336 80 19 binder Other Circular Connectors Image 1
09 0336 80 19 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
21.6342 € *
Available: 16 pcs.
Total Price:
21.63 € *
Price list
Quantity
Price per unit*
1 pcs.
21.6342 €
10 pcs.
20.3371 €
50 pcs.
19.1114 €
100 pcs.
17.9571 €
*incl. VAT plus shipping costs
Subject to prior sale

Miniature connector, 09-0336-80-19, BINDER

M16 IP40 Female panel mount connector, Contacts: 19, unshielded, solder, IP40, front mounting.

Features

  • Contact material: CuSn (Bronze)
  • Pollution degree: 1
  • Overvoltage category: I
Technical specifications
Filter Property Value
Type of locking screw locking
Version panel socket
Contact connection solder connection
Pin number 19 pole
contact surface gold-plated
Assembly front mounting
Orientation straight
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
