09 0328 89 07 | binder
Panel socket, 7 pole, solder connection, screw locking, straight, 09 0328 89 07
Unit Price (€ / pc.)
11.4240 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
11.42 € *
Price list
Quantity
Price per unit*
1 pcs.
11.4240 €
10 pcs.
10.6148 €
50 pcs.
9.8770 €
100 pcs.
8.8893 €
*incl. VAT plus shipping costs
**Subject to prior sale

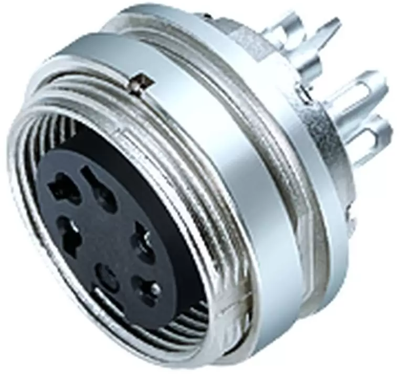

Female panel mount connector, 09 0328 89 07, binder
M16 IP40 Female panel mount connector, Contacts: 7, unshielded, solder, IP40, front fastened.
Technical specifications
| Type of locking | screw locking | |
| contact surface | gold-plated | |
| Assembly | panel mounting | |
| Contact connection | solder connection | |
| Cable cross-section | 0.75 mm² | |
| Pin number | 7 pole | |
| Version | panel socket | |
| Additional parts | equipped | |
| Shell Material | zinc die casting | |
| Orientation | straight |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
