09 0327 99 07 | binder
Panel plug, 7 pole, THT, screw locking, straight, 09 0327 99 07
Unit Price (€ / pc.)
16.8028 € *
Available: 10 pcs.
Total Price:
16.80 € *
Price list
Quantity
Price per unit*
1 pcs.
16.8028 €
10 pcs.
15.6247 €
50 pcs.
14.5299 €
100 pcs.
13.5303 €
*incl. VAT plus shipping costs
Subject to prior sale

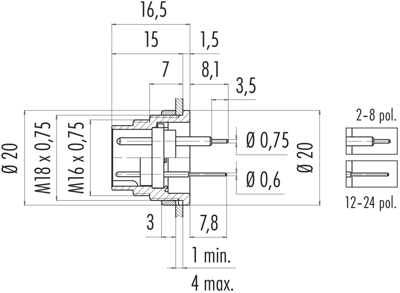

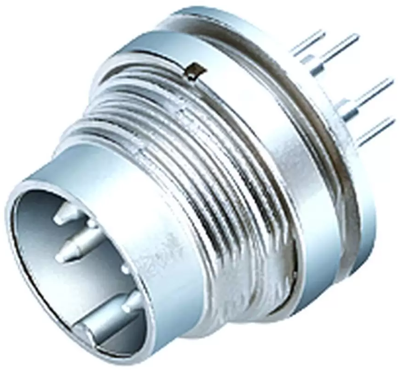

Male panel mount connector, 09 0327 99 07, binder
M16 IP40 Male panel mount connector, Contacts: 7, unshielded, THT, IP40, front fastened.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of locking | screw locking | |
| contact surface | gold-plated | |
| Assembly | panel mounting | |
| Contact connection | THT | |
| Pin number | 7 pole | |
| Version | panel plug | |
| Additional parts | equipped | |
| Shell Material | zinc die casting | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
