09 0325 00 07 | binder

Plug, 7 pole, solder cup, screw locking, straight, 09 0325 00 07

Order No.: 66F112
EAN: 4099889726480
MPN:
09 0325 00 07
Series: 680

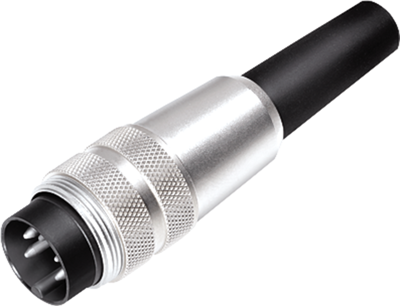

09 0325 00 07 binder Other Circular Connectors Image 1

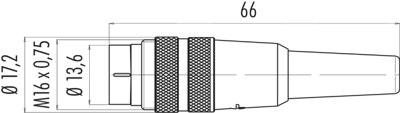

09 0325 00 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
10.5315 € *
Next delivery: 82 pcs. on 2025-07-09
Total Price:
10.53 € *
Price list
Quantity
Price per unit*
1 pcs.
10.5315 €
10 pcs.
9.2582 €
50 pcs.
8.6156 €
150 pcs.
8.2467 €
500 pcs.
7.8421 €
*incl. VAT plus shipping costs
Subject to prior sale

Circular connector, type Binder 680.

Compatible with other brands having the same contact arrangement; Contacts: female, copper tin. Male contacts: copper zinc. Contact finish: silver-plated. Cable termination: solder terminals, max. 0.75 mm².Male/female contact carrier: PBT in accordance with UL 94 V-0. Screw interlock. Degree of protection when inserted (IEC 60529): IP 40. Test surge voltage: 910 VAC. Contact resistance: max. 5.0 mohm.Insulation resistance: at least 10 Gohm. Insertion cycles: at least 500. Operating temperatures: - 40 to +85 °C.

Cable plug connectors, straight, type 680.

With collar housing made of nickel-plated brass, two-piece inner housing made of plastic, and contact insert with guide collar made of plastic, solder lug for ground connection; Cable entry: 4.0 to 6.0 mm.

Technical attributes (type, number of poles, rated voltage/rated current (40 °C)): 09-0325-00-07, 7-pole, 125 V/5.0 A

Technical specifications
Filter Property Value
Version plug
Cable cross-section 0.75 mm²
Pin number 7 pole
Orientation straight
Contact connection solder cup
Type of locking screw locking
Cable diameter 4 to 6 mm
Assembly cable assembly
Additional parts equipped
contact surface silver-plated
Shell Material PA
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
SVHC free No
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
