09 0323 89 06 | binder

Panel plug, 6 pole, solder connection, screw locking, straight, 09 0323 89 06

Order No.: 70P0680
EAN: 4099891698669
MPN:
09 0323 89 06
Series: 680

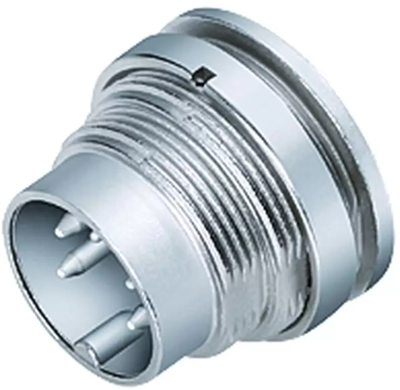

09 0323 89 06 binder Other Circular Connectors Image 1

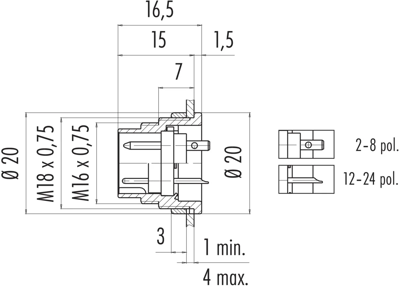

09 0323 89 06 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
14.6132 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
14.61 € *
Price list
Quantity
Price per unit*
1 pcs.
14.6132 €
10 pcs.
13.5898 €
50 pcs.
12.6259 €
100 pcs.
11.3764 €
*incl. VAT plus shipping costs
Subject to prior sale

Male panel mount connector, 09 0323 89 06, binder

M16 IP40 Male panel mount connector, Contacts: 6 DIN, unshielded, solder, IP40, front fastened.

Technical specifications
Type of locking screw locking
contact surface gold-plated
Assembly panel mounting
Contact connection solder connection
Cable cross-section 0.75 mm²
Pin number 6 pole
Version panel plug
Additional parts equipped
Shell Material zinc die casting
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
