09 0323 700 06 | binder

Panel plug, 6 pole, crimp connection, screw locking, straight, 09 0323 700 06

Order No.: 70P0676
EAN: 4099891698645
MPN:
09 0323 700 06
Series: 680

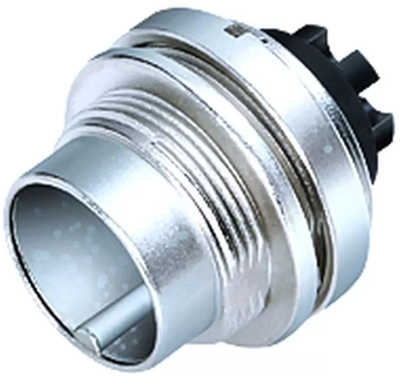

09 0323 700 06 binder Other Circular Connectors Image 1

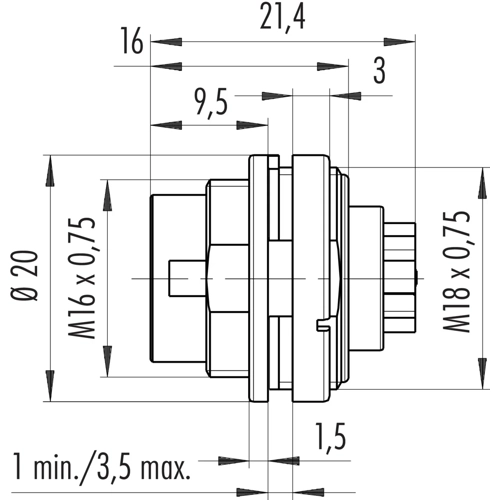

09 0323 700 06 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
6.6283 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
6.63 € *
Price list
Quantity
Price per unit*
1 pcs.
6.6283 €
10 pcs.
5.9738 €
50 pcs.
5.2598 €
100 pcs.
4.5815 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male panel mount connector, 09 0323 700 06, binder

M16 IP40 Male panel mount connector, Contacts: 6 DIN, unshielded, crimping, IP40.

Technical specifications
Type of locking screw locking
Assembly panel mounting
Contact connection crimp connection
Pin number 6 pole
Version panel plug
Additional parts unequipped
Shell Material zinc die casting
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
