09 0322 92 06 | binder

Jack, 6 pole, solder connection, screw locking, straight, 09 0322 92 06

Order No.: 70P0675
EAN: 4099891698638
MPN:
09 0322 92 06
Series: 680

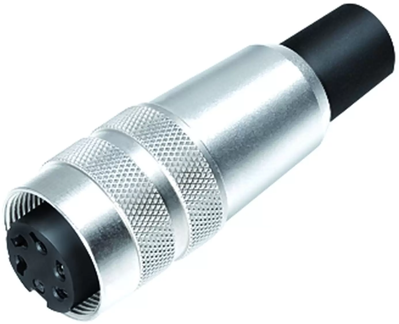

09 0322 92 06 binder Other Circular Connectors Image 1

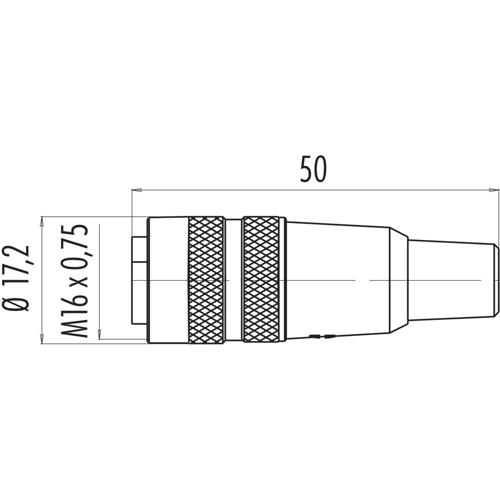

09 0322 92 06 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
14.7679 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
14.77 € *
Price list
Quantity
Price per unit*
1 pcs.
14.7679 €
10 pcs.
13.7445 €
50 pcs.
12.7806 €
100 pcs.
11.4954 €
*incl. VAT plus shipping costs
Subject to prior sale

Female cable connector, 09 0322 92 06, binder

M16 IP40 Female cable connector, Contacts: 6 DIN, 6.0-8.0 mm, unshielded, solder, IP40.

Technical specifications
Version jack
Cable cross-section 0.75 mm²
Pin number 6 pole
Orientation straight
Contact connection solder connection
Type of locking screw locking
Cable diameter 6 to 8 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material PA
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
