09 0320 89 05 | binder

Panel socket, 5 pole, solder connection, screw locking, straight, 09 0320 89 05

Order No.: 70P0671
EAN: 4099891698591
MPN:
09 0320 89 05
Series: 680

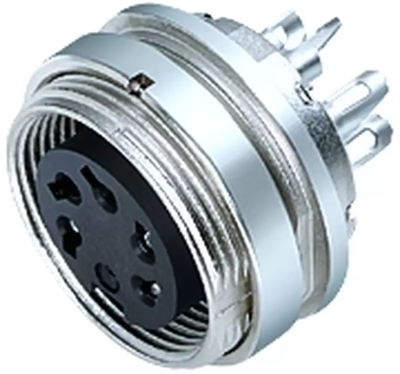

09 0320 89 05 binder Other Circular Connectors Image 1

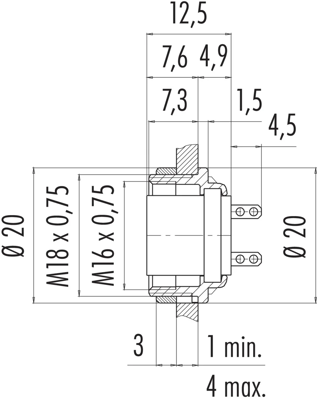

09 0320 89 05 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
11.1146 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
11.11 € *
Price list
Quantity
Price per unit*
1 pcs.
11.1146 €
10 pcs.
9.9960 €
50 pcs.
9.1987 €
100 pcs.
8.0920 €
*incl. VAT plus shipping costs
Subject to prior sale

Female panel mount connector, 09 0320 89 05, binder

M16 IP40 Female panel mount connector, Contacts: 5 (stereo), unshielded, solder, IP40, front fastened.

Technical specifications
Filter Property Value
Pin number 5 pole
Shell Material zinc die casting
Cable cross-section 0.75 mm²
Version panel socket
Assembly panel mounting
Additional parts equipped
contact surface gold-plated
Orientation straight
Type of locking screw locking
Contact connection solder connection
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
