09 0319 90 05 | binder
Panel plug, 5 pole, THT, screw locking, straight, 09 0319 90 05
Unit Price (€ / pc.)
9.7342 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
9.73 € *
Price list
Quantity
Price per unit*
1 pcs.
9.7342 €
10 pcs.
9.0440 €
50 pcs.
8.4133 €
100 pcs.
7.5803 €
*incl. VAT plus shipping costs
Subject to prior sale

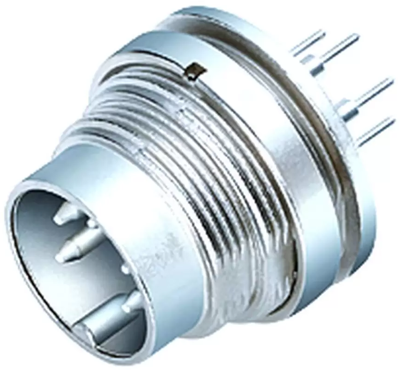

Male panel mount connector, 09 0319 90 05, binder
M16 IP40 Male panel mount connector, Contacts: 5 (stereo), unshielded, THT, IP40, front fastened.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Assembly | panel mounting | |
| contact surface | silver-plated | |
| Version | panel plug | |
| Contact connection | THT | |
| Pin number | 5 pole | |
| Shell Material | zinc die casting |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
