09 0315 99 05 | binder

Panel plug, 5 pole, THT, screw locking, straight, 09 0315 99 05

Order No.: 70P0656
EAN: 4099891698461
MPN:
09 0315 99 05
Series: 680

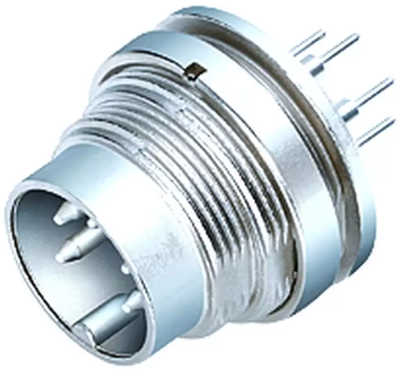

09 0315 99 05 binder Other Circular Connectors Image 1
09 0315 99 05 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
14.5061 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
14.51 € *
Price list
Quantity
Price per unit*
1 pcs.
14.5061 €
10 pcs.
13.5065 €
50 pcs.
12.5545 €
100 pcs.
11.3050 €
*incl. VAT plus shipping costs
Subject to prior sale

Male panel mount connector, 09 0315 99 05, binder

M16 IP40 Male panel mount connector, Contacts: 5, unshielded, THT, IP40, front fastened.

Technical specifications
Type of locking screw locking
contact surface gold-plated
Assembly panel mounting
Contact connection THT
Pin number 5 pole
Version panel plug
Additional parts equipped
Shell Material zinc die casting
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
