09 0315 89 05 | binder
Panel plug, 5 pole, solder connection, screw locking, straight, 09 0315 89 05
Unit Price (€ / pc.)
13.3161 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
13.32 € *
Price list
Quantity
Price per unit*
1 pcs.
13.3161 €
10 pcs.
12.3760 €
50 pcs.
11.5192 €
100 pcs.
10.3649 €
*incl. VAT plus shipping costs
Subject to prior sale

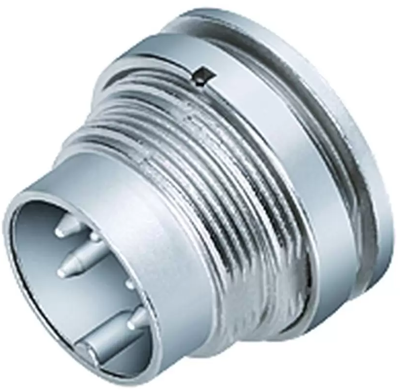

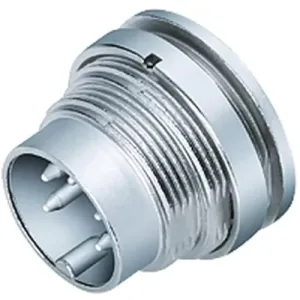

Male panel mount connector, 09 0315 89 05, binder

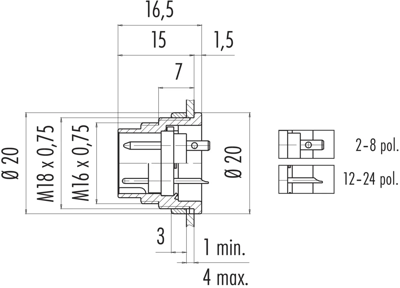

M16 IP40 Male panel mount connector, Contacts: 5, unshielded, solder, IP40, front fastened.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of locking | screw locking | |
| contact surface | gold-plated | |
| Assembly | panel mounting | |
| Contact connection | solder connection | |
| Cable cross-section | 0.75 mm² | |
| Pin number | 5 pole | |
| Version | panel plug | |
| Additional parts | equipped | |
| Shell Material | zinc die casting | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
