09 0315 780 05 | binder

Panel plug, 5 pole, crimp connection, screw locking, straight, 09 0315 780 05

Order No.: 70P0653
EAN: 4099891698447
MPN:
09 0315 780 05
Series: 680

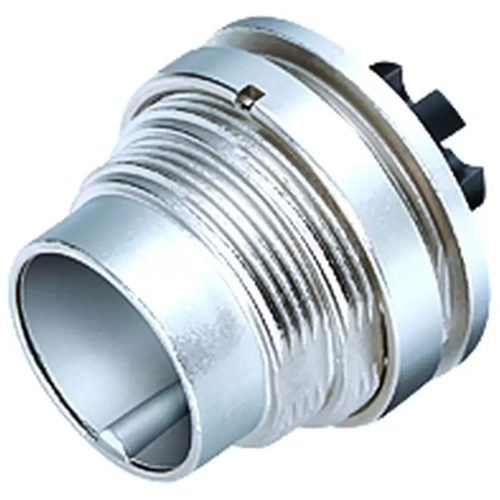

09 0315 780 05 binder Other Circular Connectors Image 1
09 0315 780 05 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
7.0210 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
7.02 € *
Price list
Quantity
Price per unit*
1 pcs.
7.0210 €
10 pcs.
6.3189 €
50 pcs.
5.5573 €
100 pcs.
5.0099 €
*incl. VAT plus shipping costs
**Subject to prior sale

Male panel mount connector, 09 0315 780 05, binder

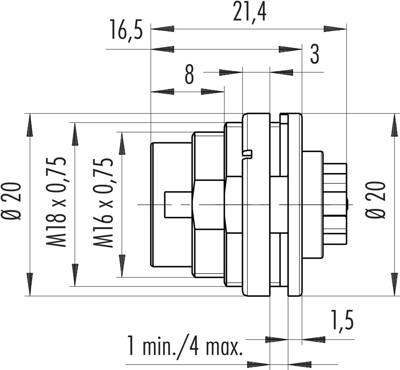

M16 IP40 Male panel mount connector, Contacts: 5, unshielded, crimping, IP40, front fastened.

Technical specifications
Type of locking screw locking
Assembly panel mounting
Contact connection crimp connection
Pin number 5 pole
Version panel plug
Additional parts unequipped
Shell Material zinc die casting
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
