09 0312 700 04 | binder

Panel socket, 4 pole, crimp connection, screw locking, straight, 09 0312 700 04

Order No.: 70P0642
EAN: 4099891698362
MPN:
09 0312 700 04
Series: 680

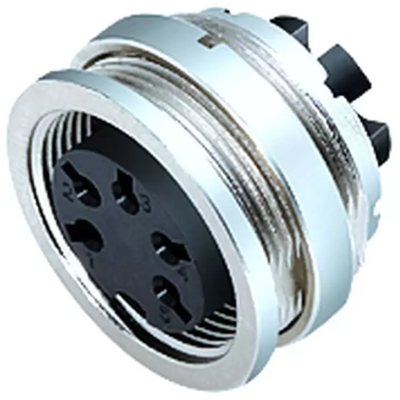

09 0312 700 04 binder Other Circular Connectors Image 1

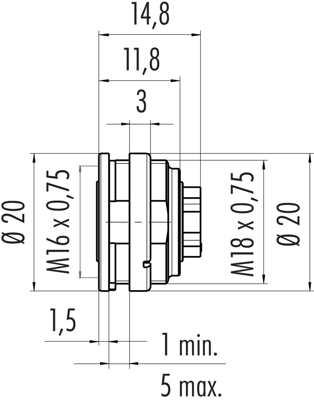

09 0312 700 04 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
6.9615 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
6.96 € *
Price list
Quantity
Price per unit*
1 pcs.
6.9615 €
10 pcs.
6.2594 €
50 pcs.
5.5097 €
100 pcs.
4.7957 €
*incl. VAT plus shipping costs
Subject to prior sale

Female panel mount connector, 09 0312 700 04, binder

M16 IP40 Female panel mount connector, Contacts: 4, unshielded, crimping, IP40.

Technical specifications
Filter Property Value
Type of locking screw locking
Assembly panel mounting
Contact connection crimp connection
Pin number 4 pole
Version panel socket
Additional parts unequipped
Shell Material zinc die casting
Orientation straight
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
