09 0310 92 04 | binder

Jack, 4 pole, solder connection, screw locking, straight, 09 0310 92 04

Order No.: 70P0633
EAN: 4099891698294
MPN:
09 0310 92 04
Series: 680

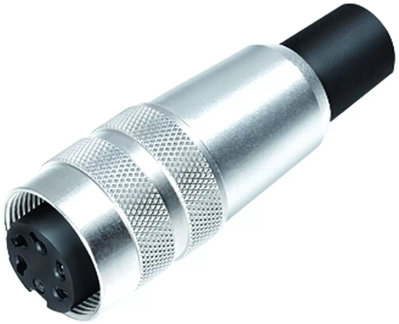

09 0310 92 04 binder Other Circular Connectors Image 1

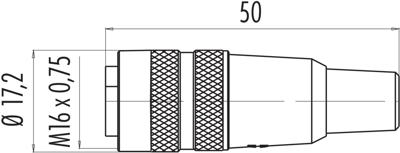

09 0310 92 04 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
13.5184 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
13.52 € *
Price list
Quantity
Price per unit*
1 pcs.
13.5184 €
10 pcs.
12.5664 €
50 pcs.
11.6858 €
100 pcs.
10.5315 €
*incl. VAT plus shipping costs
Subject to prior sale

Female cable connector, 09 0310 92 04, binder

M16 IP40 Female cable connector, Contacts: 4, 6.0-8.0 mm, unshielded, solder, IP40.

Technical specifications
Version jack
Cable cross-section 0.75 mm²
Pin number 4 pole
Orientation straight
Contact connection solder connection
Type of locking screw locking
Cable diameter 6 to 8 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material PA
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
