09 0308 89 03 | binder
Panel socket, 3 pole, solder connection, screw locking, straight, 09 0308 89 03
Unit Price (€ / pc.)
8.5085 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
8.51 € *
Price list
Quantity
Price per unit*
1 pcs.
8.5085 €
10 pcs.
7.6517 €
50 pcs.
6.7354 €
100 pcs.
6.0690 €
*incl. VAT plus shipping costs
**Subject to prior sale

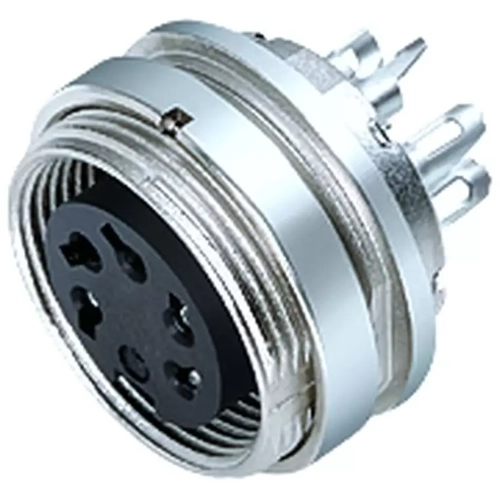

Female panel mount connector, 09 0308 89 03, binder

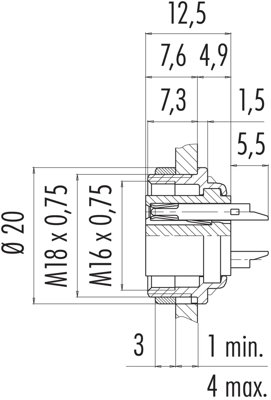

M16 IP40 Female panel mount connector, Contacts: 3 DIN, unshielded, solder, IP40, front fastened.
Technical specifications
| Type of locking | screw locking | |
| contact surface | gold-plated | |
| Assembly | panel mounting | |
| Contact connection | solder connection | |
| Cable cross-section | 0.75 mm² | |
| Pin number | 3 pole | |
| Version | panel socket | |
| Additional parts | equipped | |
| Shell Material | zinc die casting | |
| Orientation | straight |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
