09 0304 99 02 | binder
Panel socket, 2 pole, THT, screw locking, straight, 09 0304 99 02
Unit Price (€ / pc.)
8.2705 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
8.27 € *
Price list
Quantity
Price per unit*
1 pcs.
8.2705 €
10 pcs.
7.4494 €
50 pcs.
6.5450 €
100 pcs.
5.9024 €
*incl. VAT plus shipping costs
Subject to prior sale

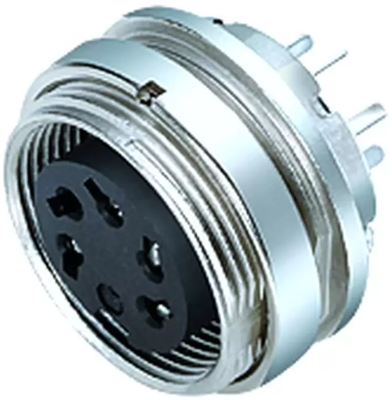

Female panel mount connector, 09 0304 99 02, binder
M16 IP40 Female panel mount connector, Contacts: 2, unshielded, THT, IP40, front fastened.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | panel socket | |
| contact surface | gold-plated | |
| Pin number | 2 pole | |
| Type of locking | screw locking | |
| Shell Material | zinc die casting | |
| Contact connection | THT | |
| Orientation | straight | |
| Additional parts | equipped | |
| Assembly | panel mounting |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
