09 0304 89 02 | binder

Panel socket, 2 pole, solder connection, screw locking, straight, 09 0304 89 02

Order No.: 70P0619
EAN: 4099891698157
MPN:
09 0304 89 02
Series: 680

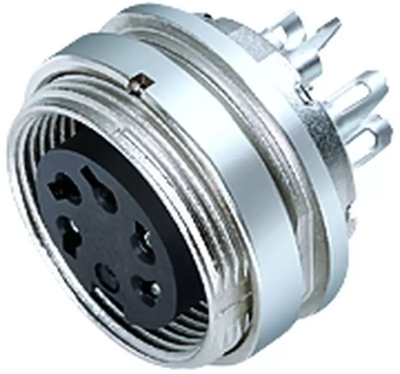

09 0304 89 02 binder Other Circular Connectors Image 1

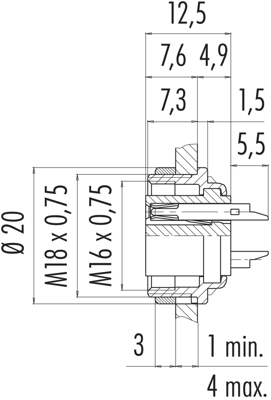

09 0304 89 02 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
7.9016 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
7.90 € *
Price list
Quantity
Price per unit*
1 pcs.
7.9016 €
10 pcs.
7.1281 €
50 pcs.
6.2713 €
100 pcs.
5.6406 €
*incl. VAT plus shipping costs
Subject to prior sale

Female panel mount connector, 09 0304 89 02, binder

M16 IP40 Female panel mount connector, Contacts: 2, unshielded, solder, IP40, front fastened.

Technical specifications
Filter Property Value
Version panel socket
Orientation straight
Shell Material zinc die casting
Pin number 2 pole
Cable cross-section 0.75 mm²
Additional parts equipped
Contact connection solder connection
contact surface gold-plated
Assembly panel mounting
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
