09 0303 99 02 | binder
Panel plug, 2 pole, THT, screw locking, straight, 09 0303 99 02
Unit Price (€ / pc.)
10.6029 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
10.60 € *
Price list
Quantity
Price per unit*
1 pcs.
10.6029 €
10 pcs.
9.8651 €
50 pcs.
9.1749 €
100 pcs.
8.2586 €
*incl. VAT plus shipping costs
Subject to prior sale
Male panel mount connector, 09 0303 99 02, binder

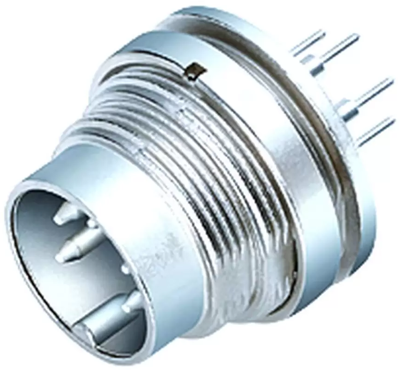

M16 IP40 Male panel mount connector, Contacts: 2, unshielded, THT, IP40, front fastened.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of locking | screw locking | |
| contact surface | gold-plated | |
| Assembly | panel mounting | |
| Contact connection | THT | |
| Pin number | 2 pole | |
| Version | panel plug | |
| Additional parts | equipped | |
| Shell Material | zinc die casting | |
| Orientation | straight |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
