09 0203 00 07 | binder
Panel plug, 6 pole + PE, crimp connection, screw locking, straight, 09 0203 00 07
Unit Price (€ / pc.)
5.9262 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
5.93 € *
Price list
Quantity
Price per unit*
1 pcs.
5.9262 €
10 pcs.
5.3431 €
50 pcs.
4.7005 €
100 pcs.
4.0817 €
*incl. VAT plus shipping costs
Subject to prior sale

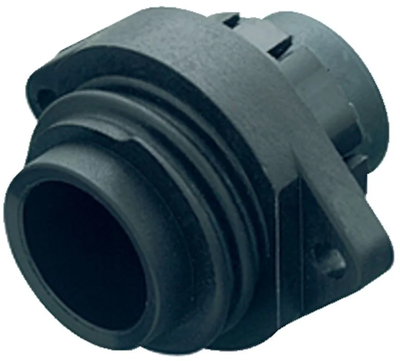

Male panel mount connector, 09 0203 00 07, binder
RD24 Male panel mount connector, Contacts: 6+PE, unshielded, crimping, IP67.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Additional parts | unequipped | |
| Type of locking | screw locking | |
| Pin number | 6 pole + PE | |
| contact surface | silver-plated | |
| Cable cross-section | 0.14-1.5 mm² | |
| Shell Material | PA | |
| Contact connection | crimp connection | |
| Assembly | panel mounting | |
| Version | panel plug |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
