09 0198 90 24 | binder

Panel socket, 24 pole, THT, screw locking, straight, 09 0198 90 24

Order No.: 70P0609
EAN: 4099891698058
MPN:
09 0198 90 24
Series: 680

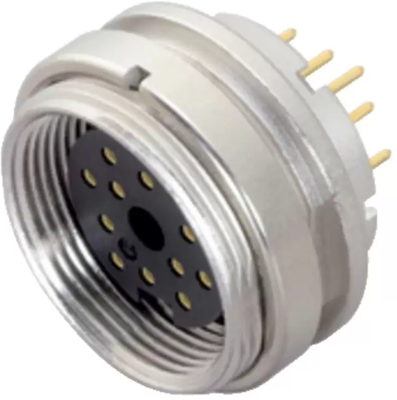

09 0198 90 24 binder Other Circular Connectors Image 1
09 0198 90 24 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
30.6782 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
30.68 € *
Price list
Quantity
Price per unit*
1 pcs.
30.6782 €
10 pcs.
28.8218 €
25 pcs.
26.7988 €
50 pcs.
24.9305 €
*incl. VAT plus shipping costs
Subject to prior sale

Female panel mount connector, 09 0198 90 24, binder

M16 IP40 Female panel mount connector, Contacts: 24, unshielded, THT, IP40, front fastened.

Technical specifications
Filter Property Value
Type of locking screw locking
Version panel socket
Assembly panel mounting
Contact connection THT
Additional parts equipped
contact surface gold-plated
Shell Material zinc die casting
Pin number 24 pole
Orientation straight
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
