09 0197 90 24 | binder

Panel plug, 24 pole, THT, screw locking, straight, 09 0197 90 24

Order No.: 70P0606
EAN: 4099891698027
MPN:
09 0197 90 24
Series: 680

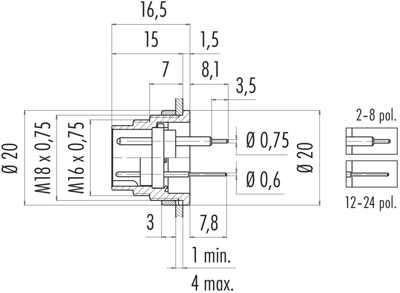

09 0197 90 24 binder Other Circular Connectors Image 1

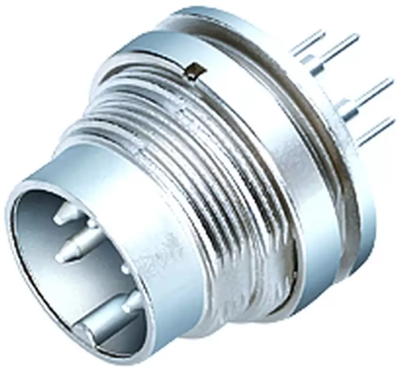

09 0197 90 24 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
42.1379 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
42.14 € *
Price list
Quantity
Price per unit*
1 pcs.
42.1379 €
10 pcs.
40.0197 €
25 pcs.
37.6159 €
50 pcs.
34.9860 €
*incl. VAT plus shipping costs
Subject to prior sale

Male panel mount connector, 09 0197 90 24, binder

M16 IP40 Male panel mount connector, Contacts: 24, unshielded, THT, IP40, front fastened.

Technical specifications
Filter Property Value
Version panel plug
Orientation straight
Shell Material zinc die casting
Pin number 24 pole
Additional parts equipped
Contact connection THT
contact surface gold-plated
Assembly panel mounting
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
