09 0197 00 24 | binder

Panel plug, 24 pole, solder connection, screw locking, straight, 09 0197 00 24

Order No.: 70P0604
EAN: 4099891698003
MPN:
09 0197 00 24
Series: 680

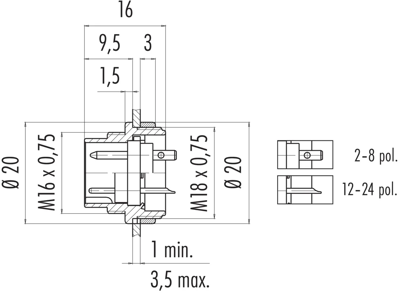

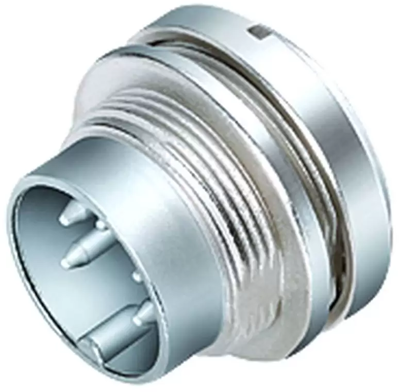

09 0197 00 24 binder Other Circular Connectors Image 1
09 0197 00 24 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
37.3898 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
37.39 € *
Price list
Quantity
Price per unit*
1 pcs.
37.3898 €
10 pcs.
35.1407 €
25 pcs.
32.6774 €
50 pcs.
30.3926 €
*incl. VAT plus shipping costs
Subject to prior sale

Male panel mount connector, 09 0197 00 24, binder

M16 IP40 Male panel mount connector, Contacts: 24, unshielded, solder, IP40.

Technical specifications
Filter Property Value
Type of locking screw locking
Version panel plug
Assembly panel mounting
Cable cross-section 0.14 mm²
Contact connection solder connection
Additional parts equipped
contact surface gold-plated
Shell Material zinc die casting
Pin number 24 pole
Orientation straight
Logistics
Property Value
Country of origin DE
Customs tariff number 85369010
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
