09 0174 780 08 | binder

Panel socket, 8 pole, crimp connection, screw locking, straight, 09 0174 780 08

Order No.: 70P2142
EAN: 4099891705053
MPN:
09 0174 780 08
Series: 723

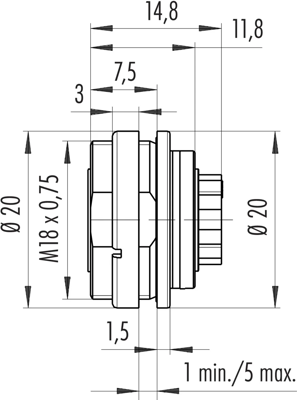

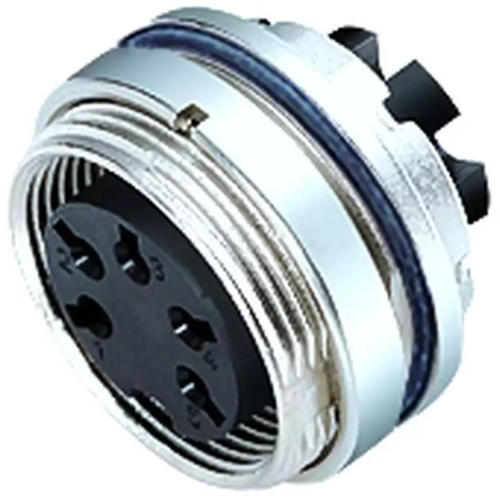

09 0174 780 08 binder Other Circular Connectors Image 1
09 0174 780 08 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
9.9484 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
9.95 € *
Price list
Quantity
Price per unit*
1 pcs.
9.9484 €
10 pcs.
8.9488 €
50 pcs.
8.2467 €
100 pcs.
7.2471 €
*incl. VAT plus shipping costs
**Subject to prior sale

Female panel mount connector, 09 0174 780 08, binder

M16 IP67 Female panel mount connector, Contacts: 8 DIN, unshielded, crimping, IP68, UL, front fastened.

Technical specifications
Type of locking screw locking
Assembly panel mounting
Contact connection crimp connection
Pin number 8 pole
Version panel socket
Additional parts unequipped
Shell Material zinc die casting
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
