09 0173 00 08 | binder

Panel plug, 8 pole, solder cup, screw locking, straight, 09 0173 00 08

Order No.: 66F674
EAN: 4099889728507
MPN:
09 0173 00 08
Series: 723

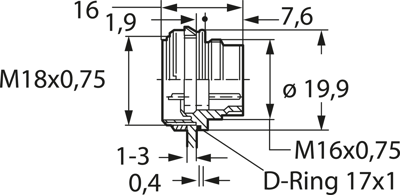

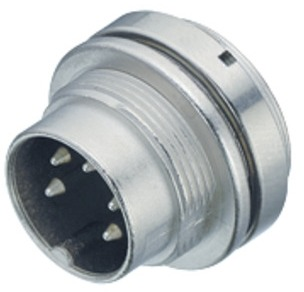

09 0173 00 08 binder Other Circular Connectors Image 1
09 0173 00 08 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
11.1860 € *
Available in 5 Days: 100 pcs. - if ordered today
Total Price:
11.19 € *
Price list
Quantity
Price per unit*
1 pcs.
11.1860 €
10 pcs.
9.8413 €
50 pcs.
9.1630 €
150 pcs.
8.7703 €
*incl. VAT plus shipping costs
Subject to prior sale

Receptacles for Circular connector, type 723.

Screw mount from the rear, with solder terminals, robust, water-proof, with screwed cable gland. Compatible with other products which have the same contact arrangement.

number of poles: 8-pole

Rated voltage: 60 V

Rated current (40 °C): 5,0 A

Male contacts: copper zinc

Contact finish: silver-plated

Cable connection: solder contacts, max. 0.75 mm²

Contact carrier: PBT to UL 94 V-0

Flanged housing: zinc die-cast, nickel-plated

Degree of protection in mated state (IEC 60529): IP 67

Test voltage: 550 V

Contact resistance: max. 5.0 mohm

Insulation resistance: at least 10 Gohm

Insertion cycles: at least 500

Operating temperatures: - 30 to +95 °C

Type: 09-0173-00-08

Technical specifications
Filter Property Value
Version panel plug
Cable cross-section 0.75 mm²
Pin number 8 pole
Orientation straight
Contact connection solder cup
Type of locking screw locking
Cable diameter 4 to 6 mm
Assembly PCB mounting
Additional parts equipped
contact surface silver-plated
Shell Material zinc die casting
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
