09 0146 78 07 | binder

Angle coupling, 7 pole, solder connection, screw locking, angled, 09 0146 78 07

Order No.: 70P0771
EAN: 4099891699475
MPN:
09 0146 78 07
Series: 682

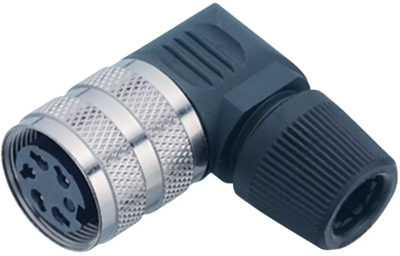

09 0146 78 07 binder Other Circular Connectors Image 1

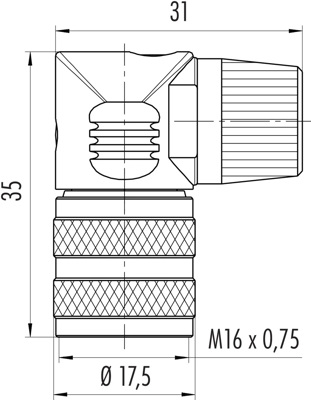

09 0146 78 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
16.6005 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
16.60 € *
Price list
Quantity
Price per unit*
1 pcs.
16.6005 €
10 pcs.
15.4462 €
50 pcs.
14.3633 €
100 pcs.
13.3637 €
*incl. VAT plus shipping costs
Subject to prior sale

Female angled connector, 09 0146 78 07, binder

M16 IP40 Female angled connector, Contacts: 7, 6.0-8.0 mm, unshielded, solder, IP40.

Technical specifications
Version angle coupling
Cable cross-section 0.75 mm²
Pin number 7 pole
Orientation angled
Contact connection solder connection
Type of locking screw locking
Cable diameter 6 to 8 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material PA
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
