09 0135 79 03 | binder

Angle plug, 3 pole, solder connection, screw locking, angled, 09 0135 79 03

Order No.: 70P0742
EAN: 4099891699185
MPN:
09 0135 79 03
Series: 682
09 0135 79 03 binder Other Circular Connectors Image 1
09 0135 79 03 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
15.4819 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
15.48 € *
Price list
Quantity
Price per unit*
1 pcs.
15.4819 €
10 pcs.
14.3990 €
50 pcs.
13.3994 €
100 pcs.
12.4712 €
*incl. VAT plus shipping costs
Subject to prior sale

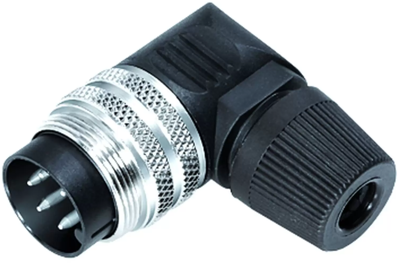

Male angled connector, 09 0135 79 03, binder

M16 IP40 Male angled connector, Contacts: 3 DIN, 4.0-6.0 mm, unshielded, solder, IP40.

Technical specifications
Version angle plug
Cable cross-section 0.75 mm²
Pin number 3 pole
Orientation angled
Contact connection solder connection
Type of locking screw locking
Cable diameter 4 to 6 mm
Assembly cable assembly
Additional parts equipped
contact surface gold-plated
Shell Material PA
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
