09 0128 300 07 | binder

Panel socket, 7 pole, solder connection, screw locking, straight, 09 0128 300 07

Order No.: 70P1499
EAN: 4099891703219
MPN:
09 0128 300 07
Series: 723

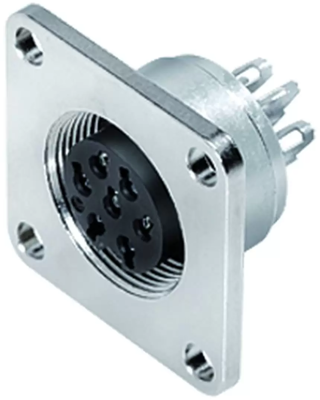

09 0128 300 07 binder Other Circular Connectors Image 1
09 0128 300 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
12.7806 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
12.78 € *
Price list
Quantity
Price per unit*
1 pcs.
12.7806 €
10 pcs.
11.8881 €
50 pcs.
11.0551 €
100 pcs.
9.9484 €
*incl. VAT plus shipping costs
**Subject to prior sale

Square female panel mount connector, 09 0128 300 07, binder

M16 IP67 Square female panel mount connector, Contacts: 7, unshielded, solder, IP67, UL.

Technical specifications
Type of locking screw locking
contact surface silver-plated
Assembly panel mounting
Contact connection solder connection
Cable cross-section 0.75 mm²
Pin number 7 pole
Version panel socket
Additional parts equipped
Shell Material zinc die casting
Orientation straight
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
