09 0128 09 07 | binder

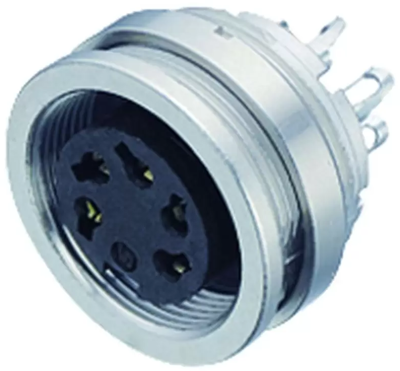

Panel socket, 7 pole, solder connection, screw locking, straight, 09 0128 09 07
Unit Price (€ / pc.)
13.6255 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
13.63 € *
Price list
Quantity
Price per unit*
1 pcs.
13.6255 €
10 pcs.
12.6616 €
50 pcs.
11.7691 €
100 pcs.
10.5910 €
*incl. VAT plus shipping costs
Subject to prior sale
Female panel mount connector, 09 0128 09 07, binder
M16 IP67 Female panel mount connector, Contacts: 7, unshielded, solder, IP67, UL.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Shell Material | zinc die casting | |
| Contact connection | solder connection | |
| Pin number | 7 pole | |
| contact surface | gold-plated | |
| Type of locking | screw locking | |
| Additional parts | equipped | |
| Version | panel socket | |
| Assembly | panel mounting | |
| Cable cross-section | 0.75 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
