09 0127 300 07 | binder

Panel plug, 7 pole, solder connection, screw locking, straight, 09 0127 300 07

Order No.: 70P1489
EAN: 4099891703141
MPN:
09 0127 300 07
Series: 723

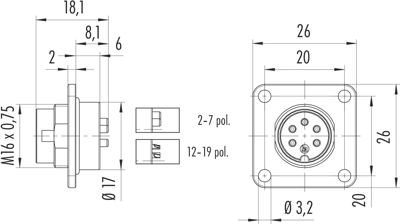

09 0127 300 07 binder Other Circular Connectors Image 1

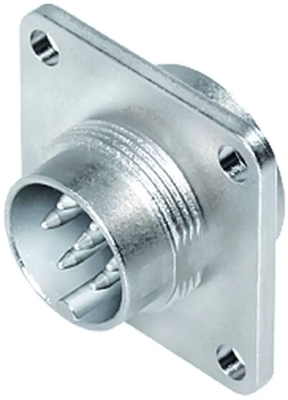

09 0127 300 07 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
12.1380 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
12.14 € *
Price list
Quantity
Price per unit*
1 pcs.
12.1380 €
10 pcs.
11.2812 €
50 pcs.
10.4958 €
100 pcs.
9.4486 €
*incl. VAT plus shipping costs
Subject to prior sale

Square male panel mount connector, 09 0127 300 07, binder

M16 IP67 Square male panel mount connector, Contacts: 7, unshielded, solder, IP67, UL.

Technical specifications
Filter Property Value
Version panel plug
Orientation straight
Shell Material zinc die casting
Pin number 7 pole
Cable cross-section 0.75 mm²
Additional parts equipped
Contact connection solder connection
contact surface silver-plated
Assembly panel mounting
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
