09 0126 70 07 | binder
Jack, 7 pole, solder connection, screw locking, straight, 09 0126 70 07
Unit Price (€ / pc.)
26.0491 € *
Available: 6 pcs.
Leadtime: On Request **
Total Price:
26.05 € *
Price list
Quantity
Price per unit*
1 pcs.
26.0491 €
10 pcs.
22.9194 €
50 pcs.
21.3605 €
150 pcs.
20.4204 €
500 pcs.
19.3851 €
*incl. VAT plus shipping costs
**Subject to prior sale

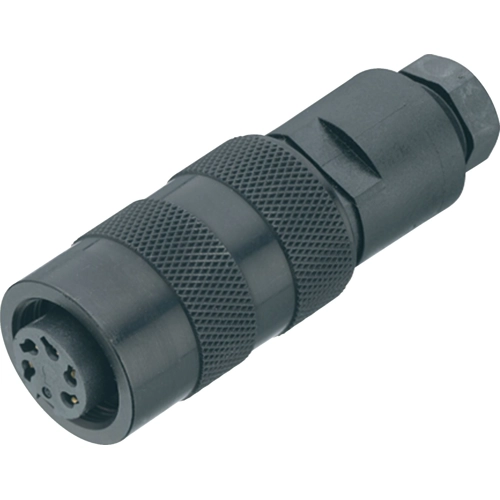

Female cable connector, 09-0126-70-07, Franz Binder
M16 IP67 Female connector, poles 7, 6.0-8.0 mm, unshielded, solder, IP67
Technical specifications
| Cable diameter | 6 to 8 mm | |
| Type of locking | screw locking | |
| contact surface | silver-plated | |
| Assembly | cable assembly | |
| Contact connection | solder connection | |
| Cable cross-section | 0.75 mm² | |
| Pin number | 7 pole | |
| Version | jack | |
| Shell Material | PA | |
| Orientation | straight |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
