09 0124 99 06 | binder
Panel socket, 6 pole, THT, screw locking, straight, 09 0124 99 06
Unit Price (€ / pc.)
16.2792 € *
Available: 17 pcs.
Total Price:
16.28 € *
Price list
Quantity
Price per unit*
1 pcs.
16.2792 €
10 pcs.
14.3157 €
50 pcs.
13.3518 €
150 pcs.
12.7568 €
500 pcs.
12.1261 €
*incl. VAT plus shipping costs
Subject to prior sale

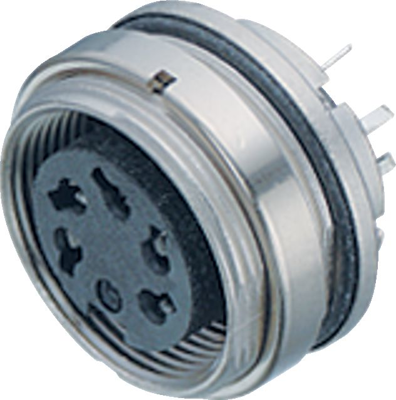

Female panel mount connector, 09-0124-99-06, Franz Binder
M16 IP67 Female connector, poles 6 DIN, unshielded, THT, IP67, UL, front fastened
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Type of locking | screw locking | |
| Assembly | panel mounting | |
| contact surface | gold-plated | |
| Version | panel socket | |
| Contact connection | THT | |
| Pin number | 6 pole | |
| Shell Material | zinc die casting |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
