09 0124 700 06 | binder

Panel socket, 6 pole, crimp connection, screw locking, straight, 09 0124 700 06

Order No.: 70P1481
EAN: 4099891703080
MPN:
09 0124 700 06
Series: 723

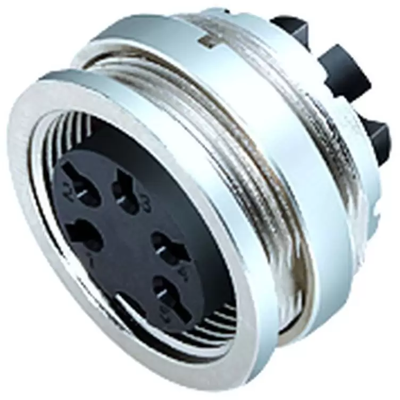

09 0124 700 06 binder Other Circular Connectors Image 1
09 0124 700 06 binder Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
8.3181 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
8.32 € *
Price list
Quantity
Price per unit*
1 pcs.
8.3181 €
10 pcs.
7.4851 €
50 pcs.
6.5807 €
100 pcs.
5.9381 €
*incl. VAT plus shipping costs
Subject to prior sale

Female panel mount connector, 09 0124 700 06, binder

M16 IP67 Female panel mount connector, Contacts: 6 DIN, unshielded, crimping, IP67, UL.

Technical specifications
Filter Property Value
Version panel socket
Orientation straight
Shell Material zinc die casting
Pin number 6 pole
Additional parts unequipped
Contact connection crimp connection
Assembly panel mounting
Type of locking screw locking
Logistics
Property Value
Customs tariff number 85369010
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
